Mn Powder-(De-dusting Grade)

General information

Powder destined for powder injection applications shall not have more than 1.0 % by weight of particles below 10 μm (the powder must be de-dusted);

Specification 规格
Element	Grade-A	Grade-B
*Mn	99.9% min.	99.7% min.
C	0.015% max.	0.03% max.
S	0.04% max.	0.04% max.
P	0.003% max.	0.005% max.
Fe	0.025% max.	0.03% max.
Si	0.02% max.	0.03% max.
N	0.04% max.	0.05% max.
O	0.4% max.	0.5% max.
**H	200ppm max.	350ppm max.
Se	10ppm max.	0.05% max.

Size Distribution (A.S.T.M.) 粒度分布
Mesh(ASTM No.)	Specification	Typical
+ 850μm (+20)	0 %	0 %
+ 600μm (+30)	< 1 %	0 %
+420μm (+40)	2% max.	1%
+75μm (+200)	80% min.	85%
- 45μm (-325)	10 % max.	3%~5%
Dust < 10 μm	< 1.0 %	0

· Moisture 0.05% max by weight

· Cleanliness Free of corrosion

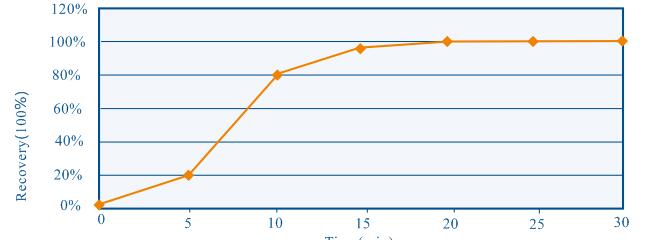

Dissolution Performance

Packing

1000kg bags on pallets;    1000公斤吨袋打托
2000kg bags on pallets;    2000公斤吨袋打托
250kg/500kg steel drums on pallets;    25公斤/500公斤铁通打托
Paper bags wrapped on pallets;      纸袋包装打托

* Other packing options are upon customer request.
* 可以根据客户要求使用其他包装方式。
