AlTiB



Grade Chemicals
Si Fe Ti V B Impurities
(each)
Impurities
(total)
Balance
AlTi5B1 °‹0.15 °‹0.20 4.5~5.5 °‹0.10 0.9~1.1 °‹0.03 °‹0.10 Al
AlTi5B0.2 °‹0.15 °‹0.15 4.5~5.5 °‹0.20 0.15~0.25 °‹0.03 °‹0.10 Al
AlTi5B0.6 °‹0.20 °‹0.25 4.5~5.5 / 0.50~0.7 °‹0.03 °‹0.10 Al
AlTi3B1 °‹0.20 °‹0.30 2.8~3.4 / 0.7~1.1 °‹0.03 °‹0.10 Al

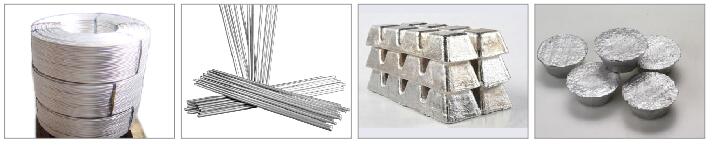

Packing
(rod)
Diameter: 9.5mm°ņ0.3mm; Length: 50mm/1000mm
10/20kg per roll/box,1mt on pellet
Packing
(coil)
Wire diameter:9.5mm°ņ0.3mm; Coil inside diameter °›365mm;
Coil length°‹270mm; Weight:180kg°ņ20kg; 3 coil per pellet
Remarks Other specs ( size/weigth/packing ) are available upon customers' request
